Platinum 1713-BFVS Polished Air Ride Bleed Feed Suspension Kit For Yamaha V-Star

Platinum Air Suspension PAS-1713-BFVS Polished Air Ride Bleed Feed Suspension Kit is made specifically for Yamaha DragStar / V Star Classic, Custom, Silverado, 950 Tourer, 1100, 1100 Classic, 1100 Custom, 1100 Silverado, 1300, and 1300 Tourer V Star Motorcycles.

• Min. Retracted 9 1/2″
• Max. Extended 11 1/2″
• Rear Lift: 4″
• Shock Travel: 2″
• Diameter: 2 3/4″
• System comes complete with one year warranty.
• Made in the U.S.A.

Platinums Bleed Feed Air Ride System for Yamaha V-Star will allow you to control your ride height and rebound. Controlled by positive pressure at all times, this system is easily adjusted at the flip of a switch for complete comfort for the riders weight or road conditions. Mono shock system gives you up 4″ lift.

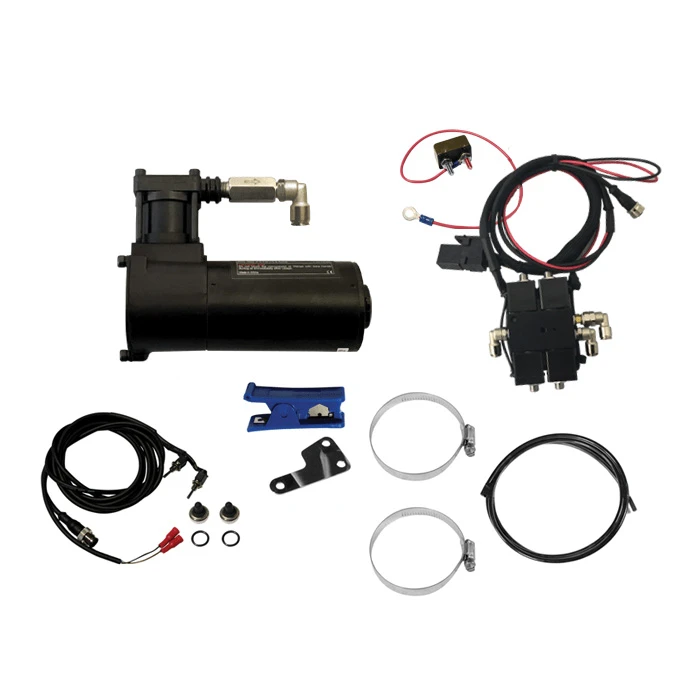

• Air cylinder machined from 6061 T-6 billet aluminum. .
• Air-control valve.
• DOT- approved 1/4″ line and fitting.
• Switch harness.
• Air compressor.
• Hardware and line cutter.

One of the company’s bestselling packages is its ‘Bleed Feed’ system, which allows the rider to control both ride height and rebound. It is  also easily adjustable at the flip of a switch for complete comfort for the rider’s weight or road conditions. The unit designed for use on all FL bagger models is the most popular of our bleed feed kits. Standard options include chrome, polished, powder coated or satin finishes. Powder coating in specific colors available by special request.
