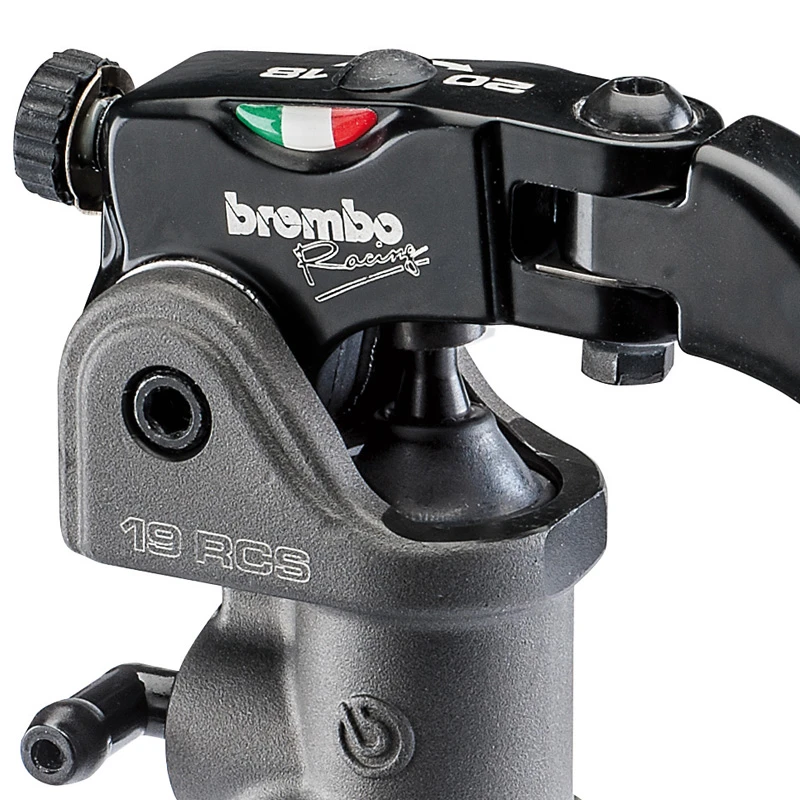

Brembo 110.A263.10 19 RCS Forged Radial Brake Master Cylinder

Brembo’s 110.A263.10 RCS Radial Forged Brake Master Cylinder is made specifically for the bikes listed below.

Radial master cylinder designed for street bikes that allows maximum readiness and perfectly modulable braking in any conditions of use with excellent linearity between the force applied to the lever and the braking response.

This brake master cylinder has the RCS system, patented by Brembo, for adjustment of the lever centre distance which allows you to obtain the ideal feeling between rider and bike. In just a few seconds using a simple screwdriver you can make the braking system more aggressive and reactive (20 mm) or softer and modulable (18 mm).This model uses a 19 mm diameter piston and an folding long lever (LL), a detail which is particularly popular with Racing riders and those who love to ride on the track.

Brembo uses only cutting-edge procedures in order to guarantee excellent operation and performance. In fact, the aluminium alloy brake master cylinder main body is obtained through forging and then machined with numerically controlled equipment.

For the surface finishing oxidation was chosen which is normally used in MotoGP and Superbike.

• Material Forged aluminium
• Ø Piston mm 19
• Lever ratio 18-20
• Lever type
• Single/double disc        DOUBLE
• Surface protection Hard anodized
• Weight (gr) 400
• Brake light micro-switch Yes
• Ø Fissaggio manubrio (mm) 22,2

RSV1000, RSV1000R (2000-2003)

RSV1000R (2004-2008)

RSV1000R Factory (2004-2007)

RSV4 / RSV4 Factory (2009-current)

Tuono models with axial mount calipers (2002-2005)

Tuono models with radial mount calipers (2002-2005)

Tuono (2006-2006)

Tuono R (2006-2010)

Tuono V4 R (2011-2016)

Tuono V4 1100 RR (2015-2016)

Shiver 750 (2007-2010)

Mana 850 (2007-2009)

TNT Sport (2005-2008)

TNT Cafè (2005-2008)

TNT Titanium (2005-2008)

Tornado (2006-2008)

TNT R160 (2011-current)

BB3 (2014-current)

DB5 (2005-2007)

DB6 Delirio (2006-2007)

DB7 (2007-2008)

R NINE T (2014-current)

HP4 (2012-current)

S 1000 R (2014-current)

S 1000 RR (with HP4 wheel specification) (2014-current)

S 1000 RR (2009-current)

916 (1994-1998)

996,998,excluding R models (1999-2003)

749,999 models with axial mount calipers (2003-2006)

749,999 models with radial mount calipers (2003-2006)

999 R/S (2003-2006)

Monster S4R S (2003-2005)

Monster 696 (2008-2010)

Monster 696 ABS (2010-current)

Monster 796 (2010-current)

Monster 796 ABS (2010-current)

Monster 821 (2015-current)

Monster 1100 (2008-2010)

Monster 1100 ABS (2010-current)

Monster 1100 S (2008-2010)

Monster 1100 S ABS (2010-current)

Sport / GT (2009-2009)

848 / 848 evo (2008-2011)

937 Supersport (2017-current)

899 Panigale (2013-current)

959 Panigale (2016-current)

1098 (2007-2008)

1198 (2009-2012)

1198 S (2009-2011)

1198 R (2009-2011)

1198 R Bayliss (2009-2009)

Hypermotard 796 (2010-2011)

Hypermotard 821 (2013-current)

Hypermotard 939 (2016-current)

Hypermotard SP 821 (2013-current)

Hyperstrada 821 (2013-current)

Hyperstrada 939 (2016-current)

Hypermotard 1100 (2007-2008)

Hypermotard 1100 S (2009-2010)

Hypermotard 1100 evo SP (2010-2011)

Streetfighter (2009-current)

Streetfighter S (2009-current)

Multistrada 950 (2017-current)

Multistrada 1200 (2011-2014)

Multistrada 1200 (ABS) (2012-2014)

Multistrada 1200 (2015-current)

1260 Multistrada (2018-current)

Diavel (2011-current)

Diavel ABS (2012-current)

X-Diavel (2015-current)

Scrambler 1100 (2018-current)

VTR 1000 SP1, SP2 (RC51) (2000-2006)

CBR600RR (2003-2012)

CBR600RR (ABS) (2011-current)

CBR1000RR (2004-2013)

CBR1000RR (without ABS) (2009-2013)

CBR1000RR (ABS) (2009-2016)

CBR1000RR SP1 / SP2 (2017-current)

CB1000 RR (2008-current)

CB1000 RR ABS (2008-current)

ZX 6 R (600 cc) (2003-2004)

ZX 6 R (636 cc) (2005-2006)

ZX 6 RR (636 cc) (2003-2004)

ZX 6 RR (600 cc) (2005-current)

ZX 6 RR (636 cc) ABS (2013-current)

Z 750 R (2011-current)

Z 750 R ABS (2011-current)

Z 800 (2013-current)

ZX 10 R (2004-2007)

ZX 10 R (2008-2010)

ZX 10 R (ABS) (2011-current)

ZX 10 R (ABS) (2011-2015)

Z 1000 (2007-2013)

Z 1000 SX (2011-2013)

Z 1000 (2014-current)

Z 1000 ABS (2014-current)

ZX 14 R (2006-current)

ZX 14 R (2006-2015)

Supermoto 950 (2005-2008)

LC8 SM (2009-2009)

LC8 SD (2009-2009)

LC8 SD-R (2009-2009)

LC8 SM-T (2009-2009)

LC8 SM-R (2009-2009)

990 Superduke (2005-2012)

RC8 (2008-current)

RC8-R (2009-current)

Piega Evo (2004-2007)

Griso 8V (2007-2007)

Corsaro (2005-2007)

F3 675 (2011-2013)

F3 800 (2013-current)

Dragster 800 RR (2015-current)

F4 750 S (2003-2007)

F4 -1000 S (2005-2007)

F4- 1000 R & Senna (2006-2007)

F4- 1078 (2009-2010)

F4- RR (2011-2011)

F4 RR Corsacorta (2011-2011)

Brutale S (2004-2005)

Brutale 910  (2006-2007)

Brutale R (2006-2007)

Brutale 1078 (2009-2011)

Brutale 1098 (2012-2013)

Brutale 1090 (2014-current)

Brutale RC 800 (2018-current)

Brutale RR 800 (2018-current)

Brutale Corsa (2014-current)

GSX-R 600 (2001-2003)

GSX-R 600 (2004-2005)

GSX-R 600 (2006-2007)

GSX-R 600 (2008-current)

GSX-R 750 (2000-2003)

GSX-R 750 (2004-2005)

GSX-R 750 (2006-2007)

GSX-R 750 (2008-current)

GSX-R 1000 (2001-2002)

GSX-R 1000 (2003-2004)

GSX-R 1000 (2005-2006)

GSX-R 1000 (2007-2008)

GSX-R 1000 (2009-2016)

GSX-R 1000 (2017-current)

Hayabusa (1999-2005)

Hayabusa (2006-2007)

Hayabusa (2008-current)

B-King (2008-current)

B-King ABS (2008-current)

Speed Triple (2004-2007)

Speed Triple (2008-2016)

Speed Triple R (2012-2016)

Street Triple (2007-2011)

Street Triple (2012-2016)

Street Triple R 765 (2017-current)

Speed Triple R 1050 (2017-current)

Speed Triple S 1050 (2017-current)

Daytona 675 (2006-2010)

Daytona 675 R (2011-2012)

Daytona 675 R (2013-current)

YZF-R6 (1999-2002)

YZF-R6 (2003-2004)

YZF-R6 (2005-2016)

YZF-R6 (2005-2007)

YZF-R6 (2008-2016)

YZF-R6 S (2006-2006)

FZ9 (2014-current)

YZF-R1 (1998-2003)

YZF-R1 (2004-2006)

YZF-R1 SP (2006-2007)

YZF-R1  (2008-2011)

YZF-R1 TCS (Tracion Control System) (2012-2014)

YZF-R1 (2008-2011)

FZ1 (2006-current)

MT-01 (2005-2006)

MT-01 (2007-current)

MT-07 (2014-current)

MT-09 (2014-current)

V- Max (2009-current)
